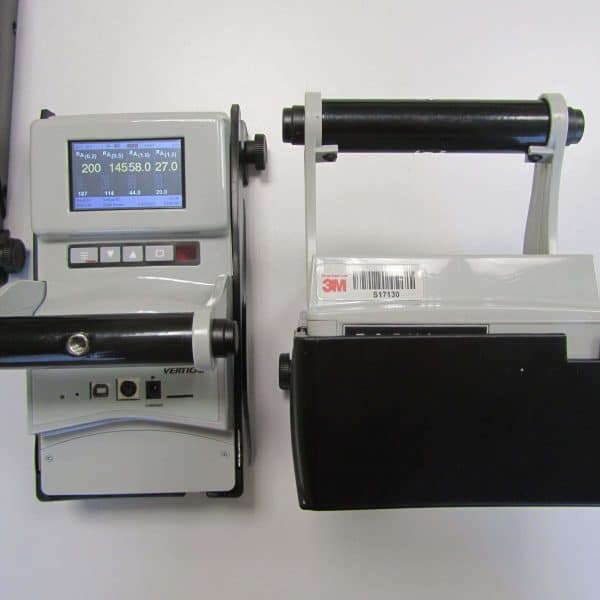

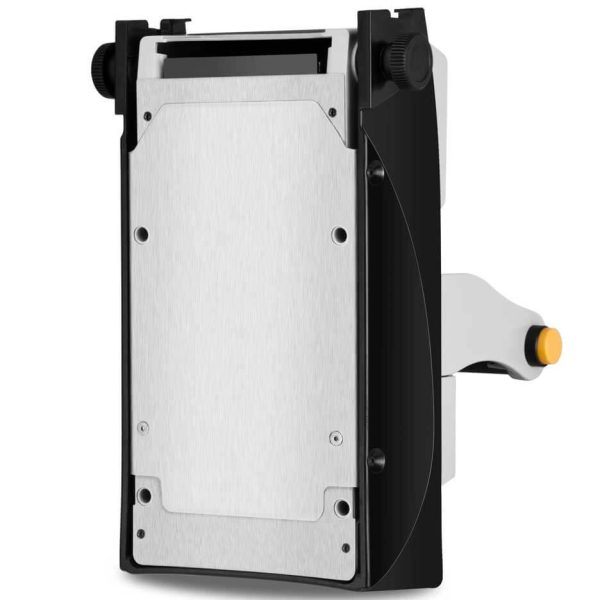

MINI Vertical
The MINI Vertical Retroreflectometer is a compact, advanced instrument designed for precise measurement of the retroreflectivity (RA) of road signs and other reflective materials. Its key features include:
- Lightweight and Portable: Weighs only 2.1 kg with compact dimensions, facilitating easy handling and transportation.
- Adjustable Illumination Angle: Features an adjustable illumination angle of -4° to +5°, allowing for versatile measurement configurations.
- Simultaneous Multi-Angle Measurements: Capable of measuring up to four observation angles simultaneously (0.2°, 0.33°, 0.5°, 1.0°, 1.5°, and 2.0°), providing comprehensive data in a single operation.
- High Storage Capacity: Equipped with a removable 8 GB SD card, capable of storing over 1,000,000 measurements, facilitating extensive data logging
- User-Friendly Interface: Features a sun-readable color transflective LCD with a touch screen for clear visibility and intuitive operation.
- Ergonomic Operation: Includes an optional wireless remote control trigger, enhancing user convenience during measurements.
- LED Technology: Utilizes LED technology, making the instrument energy-efficient and virtually maintenance-free.
- Long Battery Life: Operates on standard rechargeable AA batteries, providing more than 8,000 measurements per charge for extended field use.
- Airplane Carry-On Compatible: Comes with a carrying case that meets airplane carry-on size requirements, ensuring hassle-free transportation.
- Compliance with International Standards: Meets various international standards, including ASTM E1709, ASTM E2540, ASTM E1809, ASTM D4956, ECE 104, EN 12899-1, ISO 20471, UNE 135340, DIN 67520, MUTCD, ABNT 15292, NOM 034-SCT2-2011, EN ISO 20471, BS EN 12899-1 Annex A, CIE 54.2, CIE 1931, ANSI/ISEA 107, AS/NZS 1906.1, CUAP 01.06/04, and ECE 104
- Description
- Reviews (0)
Description
Highlights
The new MINI is smart, light and robust. It is time to forget the old dinosaur’s technology.
Android interface
Android smartphone Bluetooth interface (optional).
Portable
Light and small handheld instrument: only 2.1 kg and very compact dimensions.
Remote Control
Ergonomic operations and wireless remote control trigger.
LED Technology
Uses LED technology, which makes the instrument energy-efficient and almost maintenance-free.
Battery
Works with rechargeable AA batteries.
Airplane carry-on
Exclusive Airplane carry-on luggage compatible carrying case – dimensions sum less than 100 cm.
Ajustable entrance angle
Ajustable reading entrance angle. Exclusive 4-angle geometry (simultaneous).
Specifications
MiniReflecto Vertical is a handheld instrument for measurement of the coefficient of retroreflection RA of road signs and other materials.
Overview
Accessories
Downloads
Videos
Standard Delivery
Technical Specification
MINI Vertical is a handheld instrument for measurement of the coefficient of retroreflection (RA) of road signs, safety clothing and other materials.
The innovative optical system can measure up to 4 (four) simultaneous observation angles.
The entrance angle (β) can be fixed ( −4° / +5° ) or it can be continuously adjusted by the operator.
The combination of adjustable entrance angle with the exclusive quadruple simultaneous observation angles allows precise determination of retroreflection according to all international standards:
- ASTM E1709 (0.2°).
- ASTM E2540 (0.5°).
- ASTM D4956.
- EN 12899-1 (0.33°).
- ISO 20471 and UNE 135340 (0.2°, 0.33°, 1.0° ,1.5°).
- ECE104 (0.33°).
Car adapter
Car cigarette lighter adapter.
SDCard
User removable SDCard (8 GB). Stores more than 1.000.000 measurements.
LCD Sun Readable
Color transflective (sun readable)
LCD with touch screen.
Tilt meter
Indicates the gradient (tilt) of the floor plane.
Temperatude & Humidity Optional
Printer Optional
Ergonomic Kit Optional
Camera Optional
Bluetooth Optional
Nylon Bag Optional
Color Sensor Optional
| Carrying case | Air-plane hand baggage compatible. |
| Traceable calibration standard | |
| USB cable | |
| 8GB SD card | > 1,000,000 measurements |
| GPS | |
| Car lighther adapter charger cable | |
| Easydata Software (for Windows) | |
| User’s manual | |
| Certificate of calibration adjustment | |
| Manufacturer certificate | |
| Aperture reducer |
General Characteristics
| Observation angle | 0.2° , 0.33° , 0.5°, 1.0°, 1.5° and 2.0° (Up to 4 simultaneous). |
| Illumination angle | -4°, +5° (adjustable). |
| Spectral responsivity | CIE V (λ) adapted. Illuminant A. |
| Repeatability | 2% |
| Reproducibility | 5% |
| Observation aperture | 0.1° annular aperture |
| Measurement range | 0 – 2000 cd.lx-¹.m-² |
| Field of measurement | 28 mm |
| Measurement time | Only 1.2 s for each observation angle. |
| Memory | 8 GB SDCard – User removable. The instrument can store more than 1.000.000 measurements. |
| Display | Color / Sun readable (transflective) / Touch Screen |
| Battery | Standart AA rechargeable (6 units). More than 8000 measurements per battery charge. |
| Working temperature | -10°C to +50°C |
| Warranty | 2 years |
Dimensions
| Length | 255 mm |
| Width | 155 mm |
| Height | 170 mm |
| Weight (With batteries) | 2.1 kg |
| Weight (With carrying case) | 6.8 kg |
| Carrying Case dimensions | 460 x 300 x 265 mm |
Standards
| ASTM E1709 | 0.2° |
| ASTM E2540 | 0.5° |
| ASTM E1809 | |
| ASTM D4956 | |
| ECE 104 | 0.33° |
| EN 12899-1 | 0.33° |
| ISO 20471 and UNE 135340 | 0.2°, 0.33°, 1.0°, 1.5° |
| ASTM DIN 67520 | |
| MUTCD | |
| NOM | 034- SCT2-2011 |
| EN ISO 20471 | |
| BS EN 12899-1 Annex A | |
| CIE 54.2 | |
| CIE 1931 | |
| ANSI/ISEA 107 | |
| AS/NZS 1906.1 | |
| CUAP 01.06/04 | ECE 104 |
| Restriction of hazardous substances (RoHS): Directive 2011/65/EU of 8-June-2011 | |
| Waste Electrical and eletronic Equipment (WEEE): Directive 2002/96/EC of 27-January-2003. | |
| Disclaimer |
| All information contained in this document is subject to change without notice. |
| EASYLUX makes no warranty of any kind with regard to this material and shall not be liable for errors or damages. |
