MINI Road Studs

MV1 Retroreflectometer for Signs MINI Vertical
MINI Road Studs Easylux Horizontal Classic Retroreflectometer
0 out of 5
( There are no reviews yet. )

The MINI Horizontal Retroreflectometer is a compact, user-friendly instrument designed for precise measurement of road marking retroreflectivity. Its key features include:

  • Lightweight and Portable: Weighing only 2.1 kg, the MINI Horizontal is easy to handle and transport, making it ideal for field use.
  • Advanced LED Technology: Utilizes LED technology for energy efficiency and minimal maintenance requirements.
  • Dual Observation Angles: Offers simultaneous dual observation angles of 0.2° and 1.0°, or 0.33° and 1.0°, allowing for comprehensive assessment of various road markings.
  • Rapid Measurements: Delivers quick readings, enabling efficient data collection in the field.
  • High Storage Capacity: Equipped with a removable SD card capable of storing over 1,000,000 measurements, facilitating extensive data logging.
  • User-Friendly Interface: Features an ergonomic design with an optional wireless remote control trigger for convenient operation.
  • Long Battery Life: Operates on rechargeable AA batteries, providing more than 8,000 measurements per charge for extended field use.
  • Airplane Carry-On Compatible: Comes with a carrying case that meets airplane carry-on size requirements, ensuring hassle-free transportation.
  • Compliance with International Standards: Meets ASTM E1710 and EN 1436 standards, ensuring reliable and standardized measurements.
SKU: 018501182415 Category:
    Add to wishlist

    Description

    Highlights

    Built with modern materials like engineering plastics, aluminum and inox steel.
    The new MINI is light and robust.

    android icon
    Android interface


    Android smartphone Bluetooth interface (optional).

    leaf

    Portable

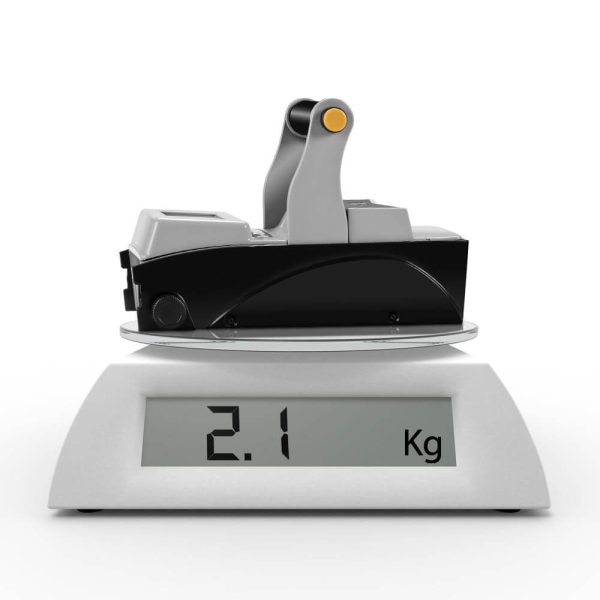

    Light and small handheld instrument: only 2.1 kg and very compact dimensions.

    wifi

    Remote Control

    Ergonomic operation and wireless remote control trigger.

    bulb

    LED Technology

    Uses LED technology, which make the instrument energy-efficient and almost maintenance-free.

    voltage
    Battery


    Works with rechargeable AA battery, which makes more than 8000 measurements per battery charge.

    Airplane

    Airplane carry-on

    Exclusive Airplane carry-on luggage compatile carrying case.

    shuffle

    Simultaneous Read

    Two simultaneous observation angles (0.2º and 1.0º) or (0.33º and 1.0º).

    Specifications

    MiniReflecto uses LED technology, which makes the instrument almost maintenance-free, fast and energy efficient.

    Overview

    Accessories

    Downloads

    Videos

    Standard Delivery

    Technical Specification

    FAQ

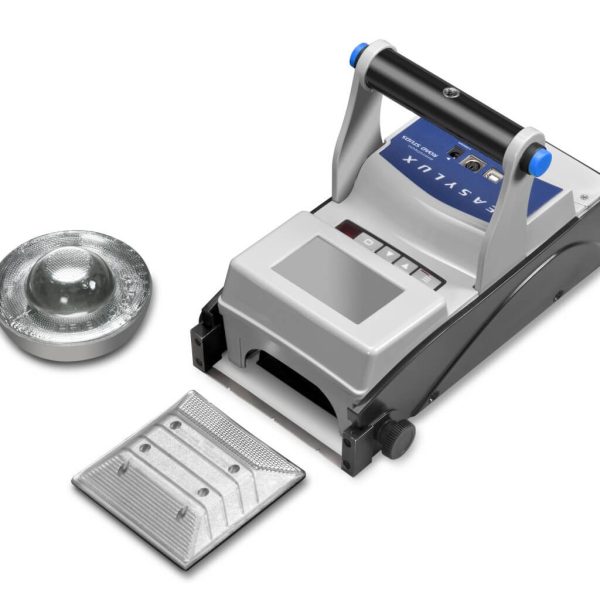

    Retroreflectometer MINI Road Studs measures the coefficient of luminous intensity RI of RRPM (Raised Pavement Markers or road studs) with simultaneous dual observation angle 0.2°(or 0.33°) and 1°.

    Thanks to exclusive stray light suppression technology, the user has full access to the measurement area. That enables correct field positioning and precise entrance angle control.

    MINI Road Studs meets all requirements of international standards:
    ASTM E1696 (0.2° and 1.0°).
    EN1463 (0.33° and 1.0°).
    GOST-R50971def.

    Tilt meter

    Indicates the gradient (tilt) of the floor plane.

    LCD Sun Readable

    Color transflective (sun readable) LCD with touchscreen.

    Car adapter

    Car cigarette lighter adapter.

    SDCard

    The instrument can store more than 1.000.000 measurements.



    Temperatude & Humidity
    Optional


    Printer
    Optional


    Ergonomic Kit
    Optional


    Camera
    Optional


    Bluetooth
    Optional


    Nylon Bag
    Optional

    Easylux Horizontal Classic Retroreflectometer: Certified Accuracy and Efficiency
    Easylux Horizontal Classic Retroreflectometer: Certified Accuracy and Efficiency
    Easylux Horizontal Classic Retroreflectometer: Certified Accuracy and Efficiency
    roadly
    User Guide

    Intertraffic World 2016 article

    DOWNLOAD

    Intertraffic World 2017 article

    DOWNLOADS

    Intertraffic World 2018 article

    DOWNLOADS

    Products Catalog

    DOWNLOADS

    Mini Manual

    PREVIEW
    REQUEST FULL VERSION

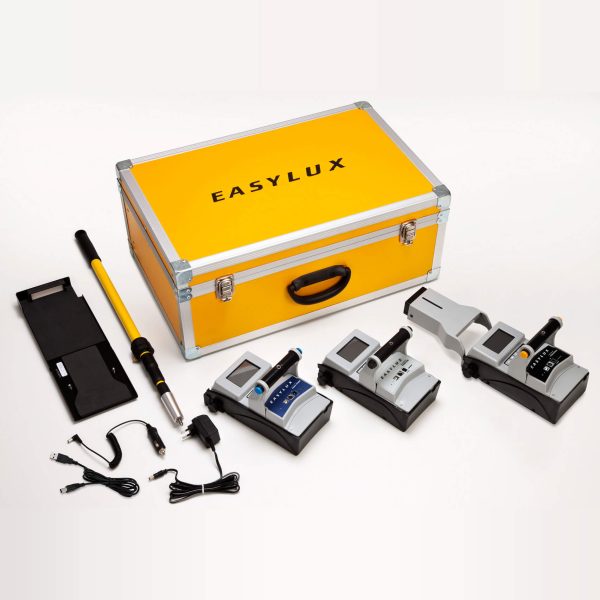

    Carrying case Airplane hand baggage compatible.
    Traceable calibration standard
    USB cable
    Car lighter adapter charger batteries
    Universal battery charger full-range automatic
    Easydata Software (for Windows)
    User’s manual
    Certificate of calibration adjustment
    Manufacturer certificate
    Removable SD card 8GB > 1 000 000 readings
    GPS

    General Characteristics

    Observation angle Dual angle 0.2° and 1.0° (0.33° for EN1463).
    Illumination angle 0° or adjustable from +45º to -45º
    Repeatability 2%
    Reproducibility 5%
    Observation aperture 0.1°
    Measurement area 75 mm x 30 mm
    Measurement sensor CIE V (λ) adapted. Illuminant A.
    Measurement range RI: 0 – 3500 mcd.lx-¹
    Measurement time Only 0.5 s.
    Memory 8 GB SD Card – Stores more than 1.000.000 readings. User removable.
    Display Color / Sun readable (transflective) / Touch Screen
    Battery Standart AA rechargeable (6 units). More than 8000 measurements per battery charge.
    Working temperature -10°C to +50°C
    Warranty 2 years

    Dimensions

    Length255 mm
    Width155 mm
    Height170 mm
    Weight (With batteries)2.1 kg
    Weight (With carrying case)6.8 kg
    Carrying Case dimensions460 x 300 x 265 mm

    Standards

    ASTM E1696
    EN1463
    GOST-R50971
    Disclaimer
    All information contained in this document is subject to change without notice.
    EASYLUX makes no warranty of any kind with regard to this material. EASYLUX shall not be liable for errors contained herein or for incidental or consequential damages in connection with the use of this material.

    Frequently asked questions (FAQ) about the MINI technology

    Question 1: Can I see the MINI measurement area ?

    The MINI horizontal is a arrangement B device: The
    illuminated are is the measured area    . A darkened
    room will demonstrate the illuminated area and
    importance of placement and ” aiming ” of the MINI.

    The MINI optical arrangement B (ASTM E1710) is
    advantageous in the sense that it leads to less variation
    of the measured value with small tilts of the
    retroreectometer that are unavoidable in practical eld
    measurements.

    Question 2: Should I send my MINI back to factory for calibration ?

    Each Easylux instrument by itself does not need re-calibration or special services unless damaged by external factors. To ensure reliable measurements, periodic checking or replacement of the instrument reference standard is recommended. Please contact www.easylux.com.br or your local distributor to know more about how to replace the calibration standards .

    In case of MiniReflecto Horizontal the ceramic reference can be checked independently with a special Easylux Calibration Kit (sold separately).

    Question 3: How many measurements can I do with new charged batteries ? Can I use any model of AA-size battery?

    Full charged batteries will provide more than 8000 consecutive measurements. You should use AA-size rechargeable batteries with at least 2300 mAh. A fully charged brand new battery will make around 8000 consecutive measurements. If the number of measurements falls much below, it is time to replace it.

    Question 4: How long is the charging time of the batteries ?

    The multi-voltage power adapter and the vehicle power adapter will recharge the batteries within 8 hours. With 4 hours it is possible to get around 4000 consecutive measurements. For fast recharging, a third-party external AA battery charger can be used. Never leave the batteries uncharged for too long.

    Question 5: Can I change the battery myself ?

    Yes. The MINI uses 6 units of AA-size battery. Just remove the back battery cover to access the batteries.

    Question 6: Should I calibrate the MINI every day?

    Yes. It is recommended to calibrate the MINI at least once a day, after recharging the batteries, before starting to work, and after a significant temperature change.

    Question 7: Does the sun affect the measurements?

    No. The MINI is completely immune to solar light or any kind of external light (indoor lamps and road lamps).

    Question 8: Can I check the retroreflectivity in wet conditions (ASTM E2177) or in continuous wetting ASTM E2832 RL-2 procedure ?

    Yes. You can work without any attachments or modifications.

    The MINI for road marking is an external beam instrument. It is completely immune to solar light or any kind of external light.

    Question 9: Can the MINI records GPS coordinates?

    It is stored for every measurement. The GPS synchronization could take from 3 to 10 minutes after power on. The MINI should be under open sky to get the GPS coordinates . The GPS is an optional item.

    Question 10: Has it options to store user, place, and additional information about the place or material under test like stripe type, color, special notes, etc... ?

    The MiniReflecto implements a LOG file system that can be used to organize your measurements.

    When a new LOG is created, the user is asked for the following:

    • LOG alias Name;
    • Road Name;
    • Starting milestone;
    • Operator’s name;
    • Direction (north, south, east, west);
    • Material type (Paint, Thermoplastic, Epoxy, etc.);
    • Special NOTE.

    Question 11: Can the MINI for road markings work with high intensity materials over 2000 mcd.m−2 .lx−1 ?

    Yes. The MINI horizontal can reach 4000 mcd.m−2 .lx−1

    Question 12: What is the memory capacity?

    All data are stored into a removable SDCARD. A standard 8GB can store over 1.000.000 measurements.

    Question 13: Can MINI meets EN1436 and ASTM E1710 ? There is any independent test of compliance ?

    The MINI is full compatible with EN1436 and ASTM E1710 standards. It was approved by an independent test laboratory StrAusZert (Germany). Test Certificate No. 0913 − 2014-04.
