Dynamic Horizontal

Retroreflectometer Rrpm Classic Chamada R1 E1602788505920 Road Studs Classic
0 out of 5
( There are no reviews yet. )

  • World’s first LED optical system highway continuous retroreflectometer
  • Low Mainenance
  • Accurately measure retro readings in daytime, or night in both dry & wet road conditions
  • Works at speeds upto 120 km/h
Availability: In stock SKU: 018508565259 Category:
    Add to wishlist

    Description

    The first in the world market that uses LED technology.

    It makes the instrument energy-efficient and almost maintenance-free.

    roadly

    Features

    Easylux Dinamic can detect, record and classify all road studs on measurement area.

    wrench

    Car Support

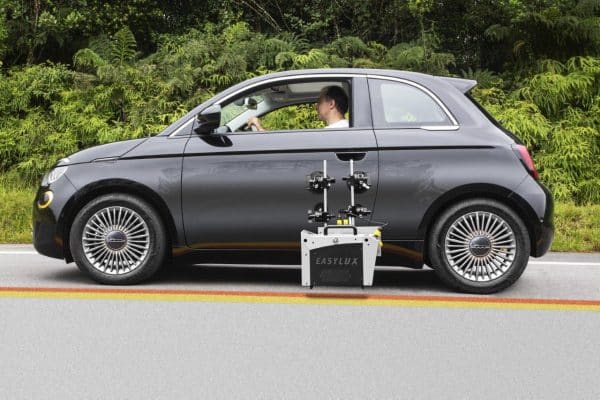

    Universal car adapter. Quick and Easy Installation.

    water-drop

    RL Wet

    Continuous RL measurements under dry or wet conditions.

    sun

    Sun Light

    Works at any light condition even over strong sun light.

    tablet

    User Interface

    Remote touch screen driver interface (tablet).

    bulb

    LED techonology

    LED technology, makes the instrument almost maintenance-free and energy efficient.

    Dashboard_font_awesome.svg

    Real-time measurements

    Real-time high speed measurements.

    Specifications

    The Easylux Dynamic is the world very first LED optical system highway continuous retroreflectometer.

    Overview

    Downloads

    Videos

    Technical Specification

    The Easylux Dynamic is the world’s first LED optical system. highway continuous retroreflectometer. The patented LED light source makes the equipment energy-efficient and almost maintenance-free.

    Easylux Dynamic measures the nighttime visibility RL coefficient under strong sun light on dry or wet conditions. Profiled markings up to 20 mm can also be measured.

    The LED optical system, combined with CIE eye sensor response V(λ) allows precise measurement of all types and colors of road markings at traffic speed (up to 150 km/h).

    Products Catalog

    DOWNLOADS
    roadly

    General Characteristics

    15 meters
    Illumination angle 86.5°
    Observation angle 1.5°
    30 meters
    Illumination angle 1.24°
    Observation angle 2.29°

    Technical

    30-meter geometry 88.76° / 1.05° (ASTM E1710)
    1.24° / 2.29° (EN1436)
    15-meter geometry 86.5° / 1.5°
    Measurement range RL: 0 – 3000 mcd · m² · lx-1
    Measurement area 500 mm length, 800 mm wide
    Measurement sensor Multiple detectors – CIE V (λ) adapted
    Receiver aperture 0.33°
    Profiled markings Up to 20 mm
    Dimensions 460 x 350 x 140 mm
    Weight 8.0 kg
     Working speed Up to 150 km/h
    Warranty 1 year
    Standards EN1436, ASTM E1710, ASTM E2176, ASTM E2302, NBR 14723 (15-meter)

    Electrical

    Energy 12 V x 20 W (car lighter adapter)
    Image log Up to 10 road marking pictures per second
    Display Tablet PC for driver assistance
    Interface WIFI
    Operating -5°C to 75°C
    Light Source LED Illuminant A
    Disclaimer
    All information contained in this document is subject to change without notice.
    EASYLUX makes no warranty of any kind with regard to this material. EASYLUX shall not be liable for errors contained herein or for incidental or consequential damages in connection with the use of this material.

    Frequently asked questions (FAQ) about the MINI technology

    Question 1: Can I see the MINI measurement area ?

    The MINI horizontal is a arrangement B device: The
    illuminated are is the measured area    . A darkened
    room will demonstrate the illuminated area and
    importance of placement and ” aiming ” of the MINI.

    The MINI optical arrangement B (ASTM E1710) is
    advantageous in the sense that it leads to less variation
    of the measured value with small tilts of the
    retroreectometer that are unavoidable in practical eld
    measurements.

    Question 2: Should I send my MINI back to factory for calibration ?

    Each Easylux instrument by itself does not need re-calibration or special services unless damaged by external factors. To ensure reliable measurements, periodic checking or replacement of the instrument reference standard is recommended. Please contact www.easylux.com.br or your local distributor to know more about how to replace the calibration standards .

    In case of MiniReflecto Horizontal the ceramic reference can be checked independently with a special Easylux Calibration Kit (sold separately).

    Question 3: How many measurements can I do with new charged batteries ? Can I use any model of AA-size battery?

    Full charged batteries will provide more than 8000 consecutive measurements. You should use AA-size rechargeable batteries with at least 2300 mAh. A fully charged brand new battery will make around 8000 consecutive measurements. If the number of measurements falls much below, it is time to replace it.

    Question 4: How long is the charging time of the batteries ?

    The multi-voltage power adapter and the vehicle power adapter will recharge the batteries within 8 hours. With 4 hours it is possible to get around 4000 consecutive measurements. For fast recharging, a third-party external AA battery charger can be used. Never leave the batteries uncharged for too long.

    Question 5: Can I change the battery myself ?

    Yes. The MINI uses 6 units of AA-size battery. Just remove the back battery cover to access the batteries.

    Question 6: Should I calibrate the MINI every day?

    Yes. It is recommended to calibrate the MINI at least once a day, after recharging the batteries, before starting to work, and after a significant temperature change.

    Question 7: Does the sun affect the measurements?

    No. The MINI is completely immune to solar light or any kind of external light (indoor lamps and road lamps).

    Question 8: Can I check the retroreflectivity in wet conditions (ASTM E2177) or in continuous wetting ASTM E2832 RL-2 procedure ?

    Yes. You can work without any attachments or modifications.

    The MINI for road marking is an external beam instrument. It is completely immune to solar light or any kind of external light.

    Question 9: Can the MINI records GPS coordinates?

    It is stored for every measurement. The GPS synchronization could take from 3 to 10 minutes after power on. The MINI should be under open sky to get the GPS coordinates . The GPS is an optional item.

    Question 10: Has it options to store user, place, and additional information about the place or material under test like stripe type, color, special notes, etc... ?

    The MiniReflecto implements a LOG file system that can be used to organize your measurements.

    When a new LOG is created, the user is asked for the following:

    • LOG alias Name;
    • Road Name;
    • Starting milestone;
    • Operator’s name;
    • Direction (north, south, east, west);
    • Material type (Paint, Thermoplastic, Epoxy, etc.);
    • Special NOTE.

    Question 11: Can the MINI for road markings work with high intensity materials over 2000 mcd.m−2 .lx−1 ?

    Yes. The MINI horizontal can reach 4000 mcd.m−2 .lx−1

    Question 12: What is the memory capacity?

    All data are stored into a removable SDCARD. A standard 8GB can store over 1.000.000 measurements.

    Question 13: Can MINI meets EN1436 and ASTM E1710 ? There is any independent test of compliance ?

    The MINI is full compatible with EN1436 and ASTM E1710 standards. It was approved by an independent test laboratory StrAusZert (Germany). Test Certificate No. 0913 − 2014-04.
