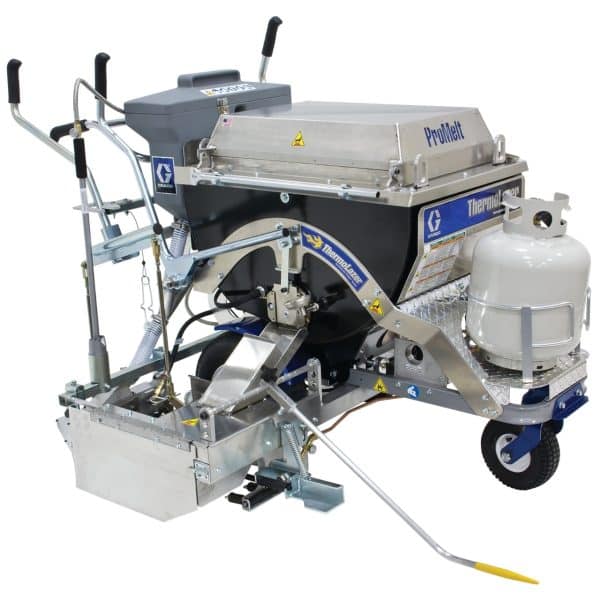

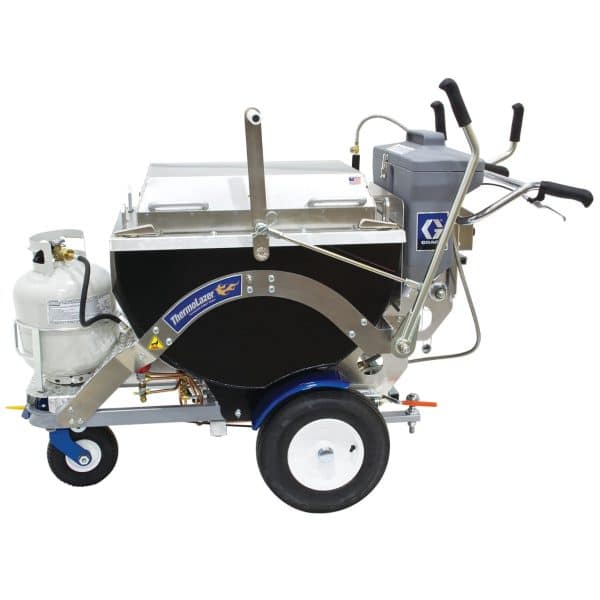

ThermoLazer ProMelt System, 6 in SmartDie II
The ThermoLazer ProMelt System is the perfect solution for first-time stripers wanting to get into the thermoplastic striping business, because it eliminates the need for a costly premelter system. Graco’s breakthrough ProMelt system can melt 300 lbs of thermoplastic in less than 1.5 hours.
- Description
- Additional information
- Reviews (0)
Description
Features
The ThermoLazer ProMelt System is the perfect solution for first-time stripers wanting to get into the thermoplastic striping business, because it eliminates the need for a costly premelter system. Graco’s breakthrough ProMelt system can melt 300 lbs of thermoplastic in less than 1.5 hours.
- QuadMelt System
- Four chamber melting system provides more melting surface for higher production
- 100,000 BTU heating system melts material fast
- SmartDie II System
- Floats on the for a superior line
- No-tool change out design makes swapping dies easy
- Built-in adjustment for mil thickness
- Hardened steel for durability
- Bead Dispensing System
- Line width adjustments take seconds and require no tools
- Holds over 90 lbs of beads
- Optional Double Drop Conversion Kit available
- EasyGlide Wheel System
- Air-filled tires make pushing and pulling easy
- Fat Track Front Swivel Wheel
- Allows for easier turning when striping curves, arrows, and other hard-to-stripe jobs
- Ease-Z-Steer Handle Bar System
- Makes turning and handling smooth and easy
- Die Burner System
- Direct head keeps material flowing even in cooler conditions
- Compatible with LineDriver
- Add a LineDriver for unmatched performance
Specifications & Documents
Technical Specifications
| Compatible Material | Thermoplastics, Glass Beads, Alkyds |
|---|---|
| Compatible Surfaces | Pavement |
| Includes | 6 in SmartDie II |
| Maximum Working Pressure (psi) | 250 |
| Model | ThermoLazer |
| Number of Colors | One Color |
| Number of Hoppers | 1 |
| Series | ProMelt |
| Type | Walk-Behind Line Striper |
| Weight (lb) | 345 |
Product Manuals
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English (141 KB)
(English Only)
Additional information
| Weight | 664070.0 g |
|---|---|
| Dimensions | 193.0 × 134.0 × 183.0 cm |
