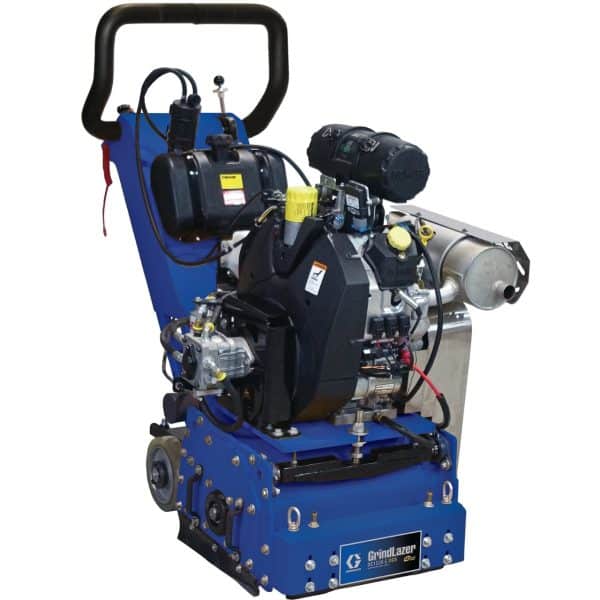

GrindLazer HP DC1538 G DCS Self-Propelled Gas-Powered Scarifier, Low-Speed Pulley Kit
The DC1538 G DCS heavy-duty, self-propelled drum scarifier is designed to tackle the most demanding removal and surface preparation jobs. It’s capable of removing a path up to 16 inches wide and features Graco’s electronic DCS Depth Control System to quickly adjust cut depth without stopping.
- Description
- Additional information
- Reviews (0)
- Specifications
- Prdocut Documents
Description
Multi-Function Capability
- Ideal for leveling, grooving, scarifying, and coating removal
- Covers up to a 16-inch-wide path for maximum efficiency
- Compatible with a wide selection of cutters for various applications
- Low-speed pulley kit optimized for carbide flail cutters
- Quick-change side plate enables fast and easy drum removal
Precision Depth Control System
Accurate Adjustments Without the Guesswork
- Instantly modify cutter depth at the push of a button
- Ensures precise cut depth for leveling, grooving, and inlay applications
- Prevents accidental damage caused by dropped drums
DCS Controller
Complete Operator Control & Accuracy
- Intuitive control panel for seamless depth adjustments
- Customizable “zero point” calibration for precise cutting alignment
- Fine-tune depth settings in 0.01-inch increments
- Displays real-time active depth for enhanced accuracy
- Supports both English and metric units
- Heavy-duty construction built for extreme job site conditions
- Electronic components are fully protected from dust, debris, water, and vibration
Self-Propelled Performance
- Variable-speed hydrostatic drive allows operators to optimize speed based on the application
Built for Durability & Power
- All-steel chassis ensures long-lasting durability
- Low-vibration design enhances operator comfort and precision
- Long-life bearings extend service life
- Powered by a 38 HP Kohler® EFI Gasoline Engine for superior performance
Advanced Dust Control
- Integrated dust port allows for easy connection to LazerVac vacuum systems, keeping the job site cleaner and safer
Additional information
| Weight | 500774.0 g |
|---|---|
| Dimensions | 183.0 × 122.0 × 134.0 cm |
Be the first to review “GrindLazer HP DC1538 G DCS Self-Propelled Gas-Powered Scarifier, Low-Speed Pulley Kit”
| Specification | Details |
|---|---|
| Air Filter Type | Heavy-Duty |
| Cutter Drum Diameter (in) | 10 |
| Cutter Type | Drum |
| Depth Adjustment | Depth Control System (DCS) |
| Engine Brand | Kohler |
| Engine Size (HP) | 38 |
| Engine Start Type | Electric Start |
| Maximum Cut Rate (ft²/hr) | 3500 |
| Maximum Cut Width (in) | 16 |
| Product Series | High Production |
| Type | Concrete Scarifier |
| Vacuum Port | Yes |
